OIL SYSTEM

Available On Request

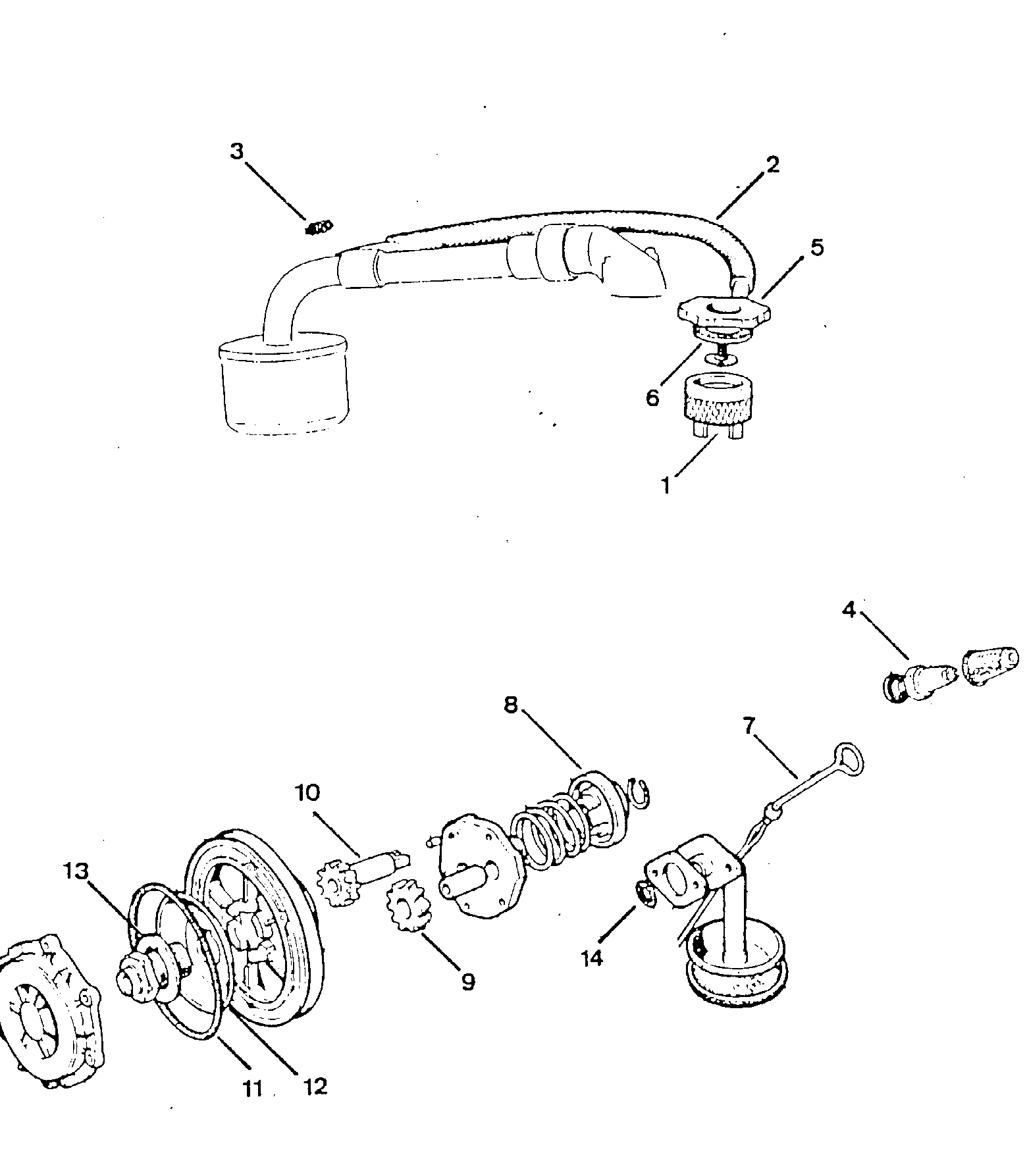

Image Number Part Number Product Price ex VAT
1 HNG3004156014 OIL FILLER STRAINER 500 £22.64
5 HNG3004122758 OIL FILLER CAP 500N/D £7.43
7 4004111724 Dip Stick Please Enquire
8 HNG3000987046 OIL PRESSURE RELEASE VALVE 500R/126 £20.00
9 HNG3000974665 OIL PUMP GEAR 500 N/D/F £8.35
10 300098709 Drive Gear (6mmShaft) Please Enquire
Not Illustrated HNG3004183339 OIL PUMP GEAR 500F £16.50
Not Illustrated HNG1000005152/1 OIL PUMP ASSEMBLY 500R/126 £112.50
Not Illustrated HNG1000005100 OIL SUMP 500 Please Enquire
Not Illustrated HNG1000005177 ***NLA*** OIL PUMP & COVER 126 £59.68
Not Illustrated 3004299376 Driven Gear Please Enquire
Not Illustrated 3004299378 Drive Gear c/w shaft Please Enquire
Not Illustrated 5100/1 Aluminium Sump (Large) Please Enquire
Not Illustrated HNG3004306766 OIL SUMP 500/126 £81.00
