FUEL SYSTEM

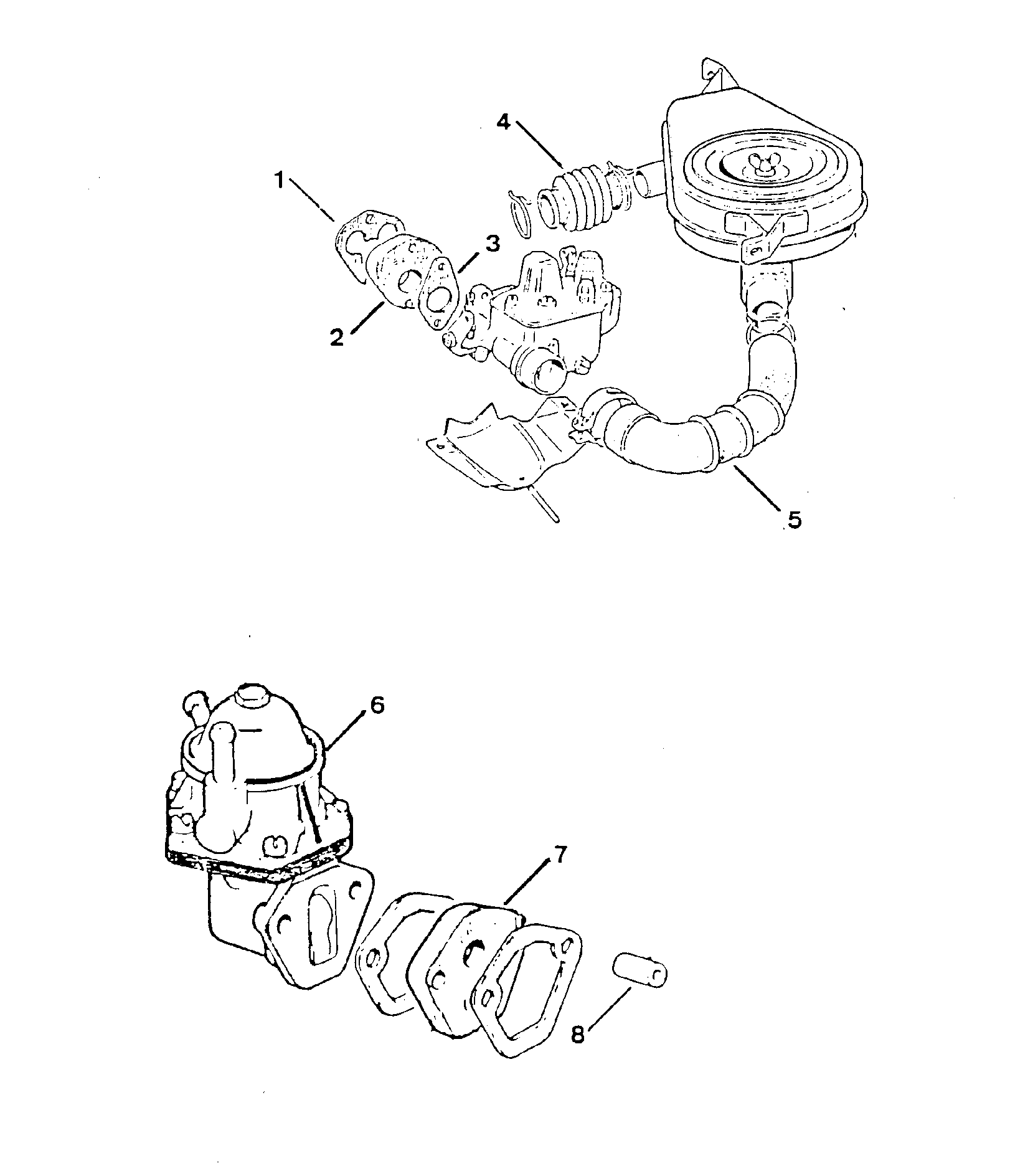

Image Number Product Price ex VAT
1 CARBURETTOR GASKET 500 GIARDINIERA £0.77
6 FUEL PUMP 500/126 FOR USE WITH ALTERNATO £46.75
6 FUEL PUMP 500/126 600to 3/76 WITH DYNAMO £41.25
7 FUEL PUMP SPACER 500F/600D (Thin) £6.30
7 FUEL PUMP SPACER 500R/126 £10.50
8 AIR FILTER 600D/500 GIARDINIERA £10.95
Not Illustrated FUEL TANK SENDER UNIT 500L £51.00
Not Illustrated FUEL TANK CAP 500D/600D £23.52
Not Illustrated DELLORTO FZD 30/24 SEMI DOWNDRAFT CARBURETTOR £395.00
Not Illustrated FUEL PUMP ROD FIAT 500R/126 £8.50
Not Illustrated MILLERS VSPe PLUS PETROL ADDITIVE - 500ml (Road) £31.23
Available On Request
Image Number Part Number Product Price ex VAT
2 HNG3004055563 DRIP TRAY F. CARBURETTOR 500 Please Enquire
3 HNG3004055562 CARBURETTOR BASE PLATE GASKET 500 GIARD £2.03
4 HNG3004062519 Schlauch 500 Giardiniera Please Enquire
5 HNG3004055693 AIR FILTER PIPE 500 GIARDINIERA £13.00
6 HNG3004167919 FUEL PUMP 500 GIARDINIERA £32.40
7 HNG3004055611 FUEL PUMP SPACER 500D/GIARDINIERA £7.10
8 HNG1000005128 AIR FILTER 500 38MM £6.95
Not Illustrated HNG3004396613 AIR FILTER TO CARB. CONNECTING TUBE 126/600cc ENGINES £21.00
Not Illustrated HNG3004374276 FUEL TANK SENDER UNIT 126 BIS £54.40
Not Illustrated 3000987316 Fuel Tank Sender Unit Please Enquire
Not Illustrated 3004067780 Fuel Tank Sender Unit Please Enquire
Not Illustrated HNG3004122648 FUEL TANK SENDER 500F/GIARD £48.00
Not Illustrated HNG3004181663 FUEL TANK CAP THREADED AND VENTED 500, 600D/1100R/DINO £14.95
Not Illustrated 300435745 Fuel Pipe Please Enquire
Not Illustrated HNG3004381128 CARBURETTOR NEW 126/650cc 28IMB WEBER £253.48
Not Illustrated 1000005132/RECON CARBURETTOR 500D/F IMB26 WEBER EXCHANGE £260.00
Not Illustrated 5168 Carburettor Please Enquire
Not Illustrated HNG3004310624 FUEL TANK 126 Please Enquire
Not Illustrated 3077275350 Carburettor Please Enquire
