DRIVESHAFTS - 2

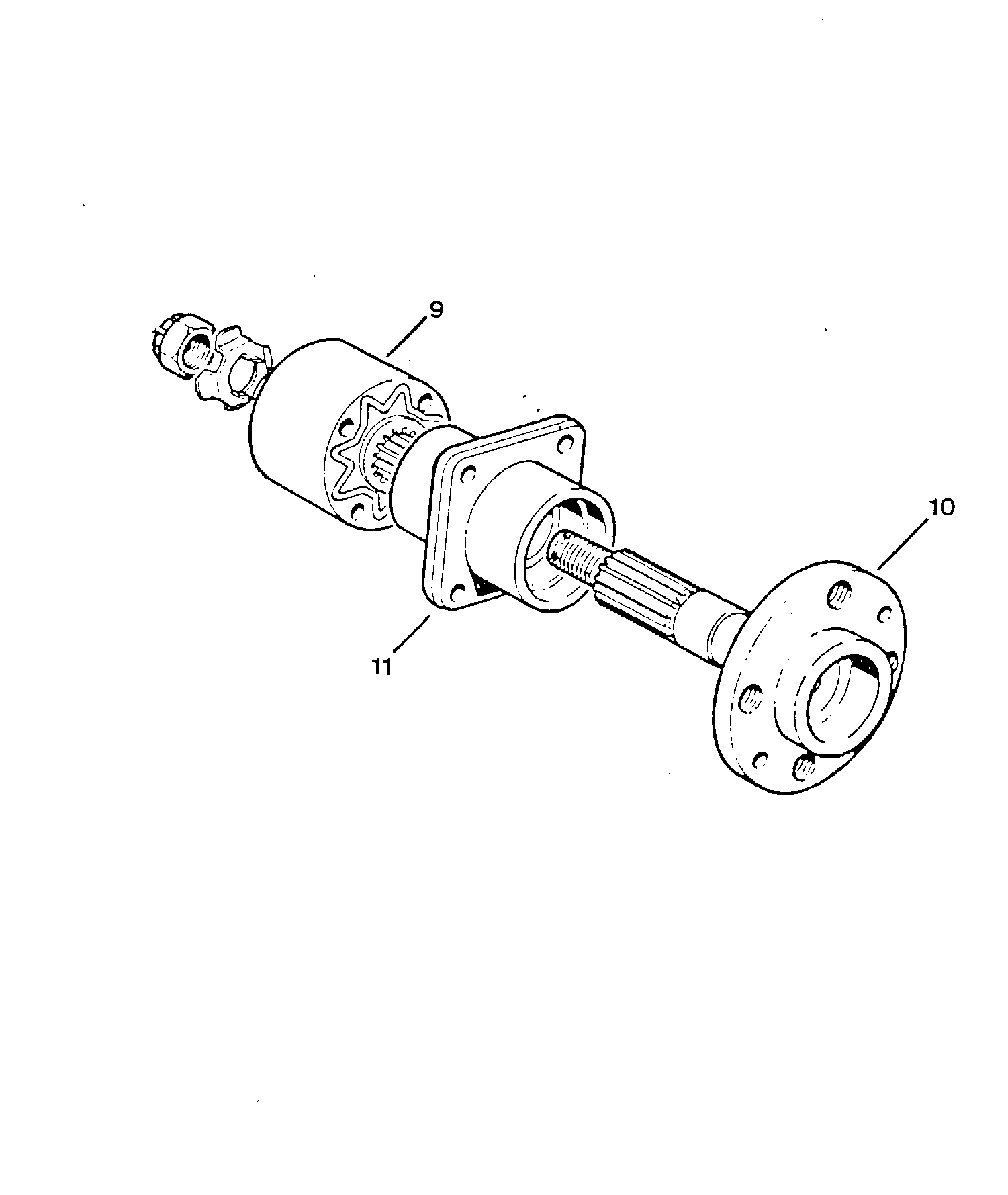

Image Number Product Price ex VAT
3 REAR WHEEL BEARING OIL SEAL 500F/R/126 £3.40
9 DRIVE SHAFT COUPLING 500D/N CORSE SPLINE OEM FIAT £70.00
9 DRIVESHAFT COUPLING 500F/R/126/600D £33.75
15 WHEEL BEARING COLLAPSE SPACER 500/126 £3.40
17 REAR STUB AXLE LOCATING WASHER 500F £1.60
19 CIRCLIP 500D/F (NARROW SHAFT) £0.36
20 DRIVE SHAFT COUPLING BOLTS 500 £2.50
Not Illustrated DRIVESHAFT ADAPTOR FLANGE 500D ADAPTOR £56.00
Available On Request
Image Number Part Number Product Price ex VAT
9 HNG1000005240 DRIVESHAFT COUPLING 500D FINE SPLINE £165.00
9 HNG1000005238 DRIVESHAFT COUPLING 500N £70.00
10 HNG1000005246 STUB AXLE REAR 500F/R/126 £105.00
10 HNG1000005246/OEM STUB AXLE REAR 500 F/R/126 £105.00
11 HNG1000005247 HUB (REAR) 500F/R £37.85
12 HNG1000005243 WHEEL BEARING REAR 500 N/D/F/R/126 £8.50
14 HNG3004113070 BEARING SPRING CLIP 500R/126 £0.65
16 HNG3000890292 REAR HUB SPACER 500/126 £10.80
18 HNG3004037820 CASTELLATED NUT 500F £5.60
20 HNG3000996303 DRIVESHAFT TO HUB BOLT 500 D/N Please Enquire
21 3000970290 Inner Boot Retainer Please Enquire
Not Illustrated HNG3004095427 DRIVESHAFT FLANGE 500 F/L/R (ORIGINAL FIAT) £15.78
