COOLING SYSTEM

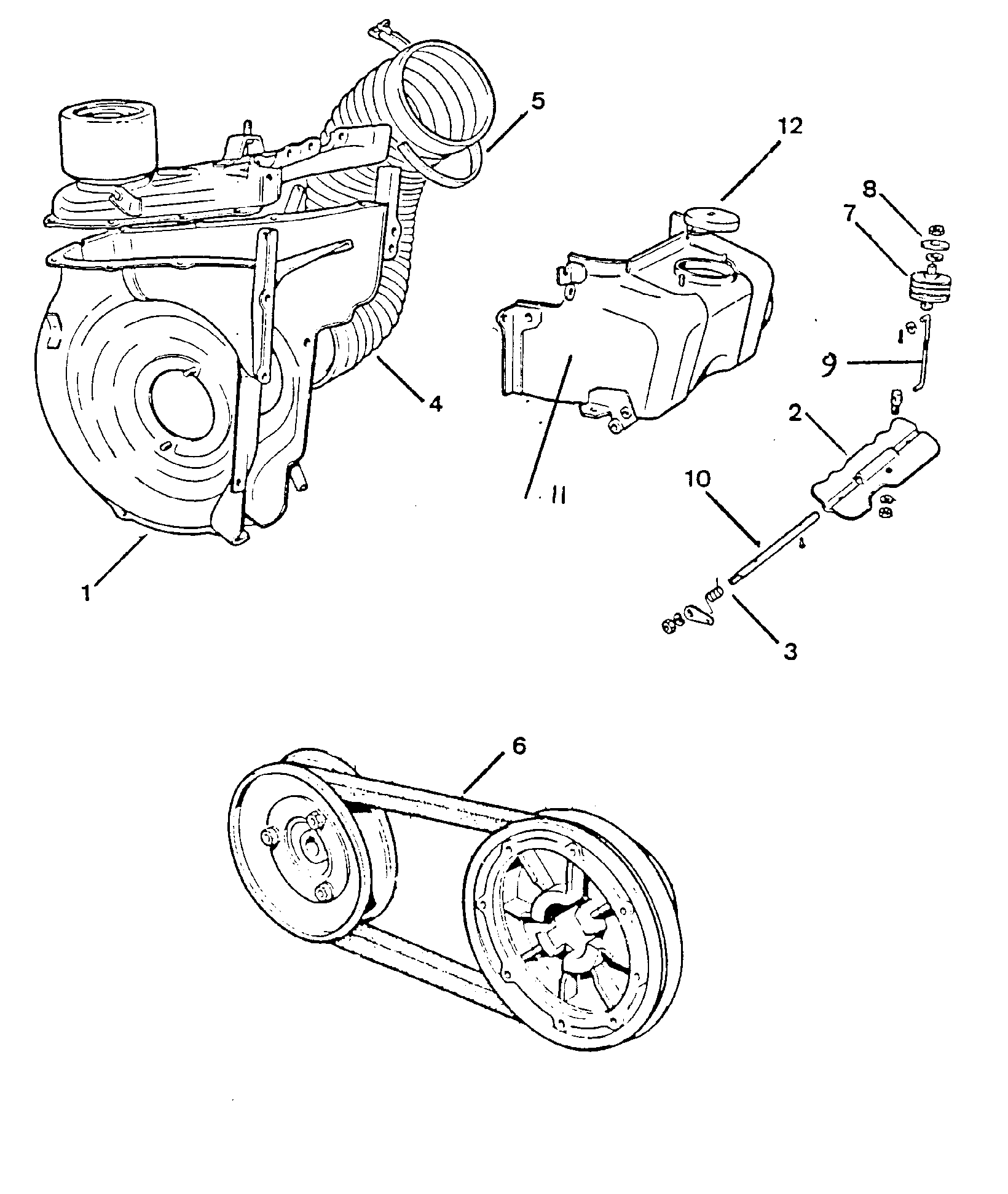

Image Number Product Price ex VAT
2 THERMOSTAT FLAP 500 F/L/R/126 £14.50
4 "ELEPHANT" INTAKE TRUNKING 500 [Pirelli} £23.00
6 FAN BELT 10 X 825 126 ALTERNATOR £14.04
7 THERMOSTAT 500 F/R/126 £21.00
9 THERMOSTAT LINKAGE 500/126 £8.08
10 Thermostat linkage shaft £14.10
11 THERMOSTAT & HOUSING 500R/126 £68.00
Not Illustrated THERMOSTAT BOTTOM WASHER 500 £0.86
Not Illustrated COOLING FAN 500F/R 126 £52.50
Available On Request
Image Number Part Number Product Price ex VAT
1 3004293339 Front Cowling Please Enquire
1 3004353715 Front Cowling Please Enquire
3 3004289536/1 Thermostat Flap Linkage Kit Please Enquire
4 HNG3004070210 FAN SHROUD 500 GIARDINIERA £43.87
5 HNG3010292390 TRUNKING TOP CLIP 500/126 £1.60
6 HNG3004153107 FAN BELT 850N/ GIARDINIERA £8.51
7 HNG3004059201 THERMOSTAT 500 GIARDINIERA £57.20
8 HNG3004048674 THERMOSTAT TOP WASHER 500 £2.10
12 3004048675 THERMOSTAT TOP COVER Please Enquire
Not Illustrated HNG3004300631 HEATER TUNNEL FIAT 500 D/F/L/R £25.00
Not Illustrated ABA2045 ENGINE LID SUPPORT CLIPS 500 £90.00
Not Illustrated 3004118651 THERMOSTAT HOUSING COMPLETE 500 F/L £199.50
