ENGINE & GEARBOX MOUNTS

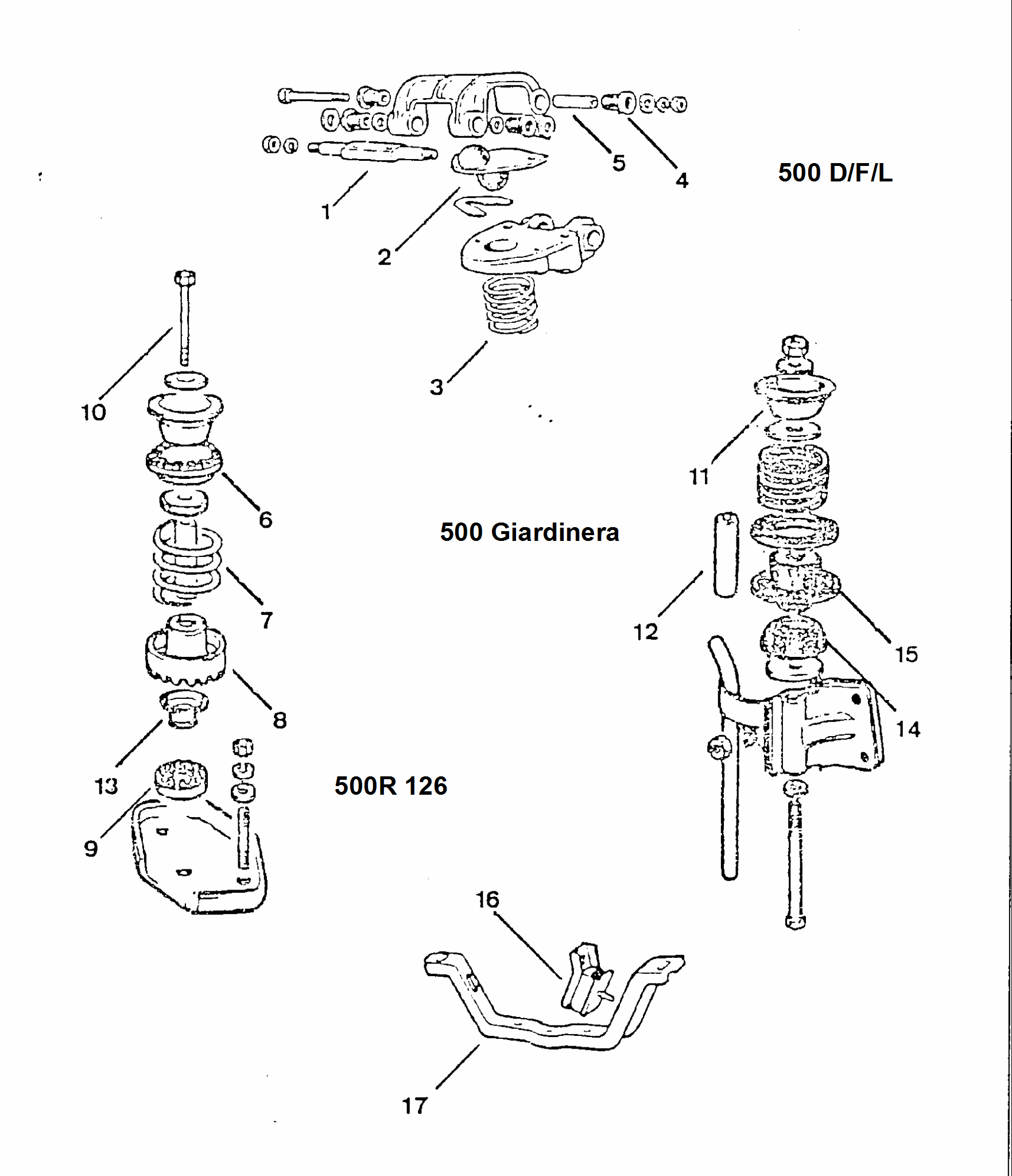

Image Number Product Price ex VAT
2 ENGINE MOUNT RUBBER PAD 500 N/D/F £11.90
3 ENGINE MOUNT SPRING 500 F £8.15
4 ENGINE MOUNT BUSH 500 FOR ALLOY HOUSING £1.50
16 GEARBOX MOUNT 500/126 £6.95
17 GEARBOX MOUNT HANGER 500/126 £22.50
Not Illustrated REAR ENGINE MOUNT RUBBER KITS 500 R/126 £8.00
Available On Request
Image Number Part Number Product Price ex VAT
5 HNG3000986551 SPACER - CYLINDER HEAD 500 N/D/F -£1.00
6 HNG3004300255 ENGINE MOUNT RUBBER 500R/126 (TOP) £4.80
7 HNG3004301017 ENGINE MOUNT SPRING 500R £4.74
8 HNG3004300254 ENGINE MOUNT RUBBER 500R/126 (MIDDLE) £3.50
9 HNG3004300253 ENGINE MOUNT RUBBER 500R/126 (LOWER) £1.00
10 HNG3004312093 ENGINE MOUNT BOLT 500R/126 £4.00
11 HNG3004300976 TOP MOUNT WASHER 500R/126/GIARDINIERA £4.80
12 HNG3004055241 ENGINE MOUNT BUSH 500R/126/GIARDINIERA £4.00
13 HNG3004306596 ENGINE MOUNT BUSH 500R/126 (PLASTIC) £2.32
14 HNG3004055245 ENGINE MOUNT BUSH LOWER 500 GIARDINIERA £3.98
15 HNG3004056391 ENGINE MOUNT BUSH UPPER 500 GIARDINIERA £3.61
Not Illustrated 300098553 BOLT FOR ENGINE ALLOY MOUNT 500 D/F/L/ £7.00
