OIL SYSTEM

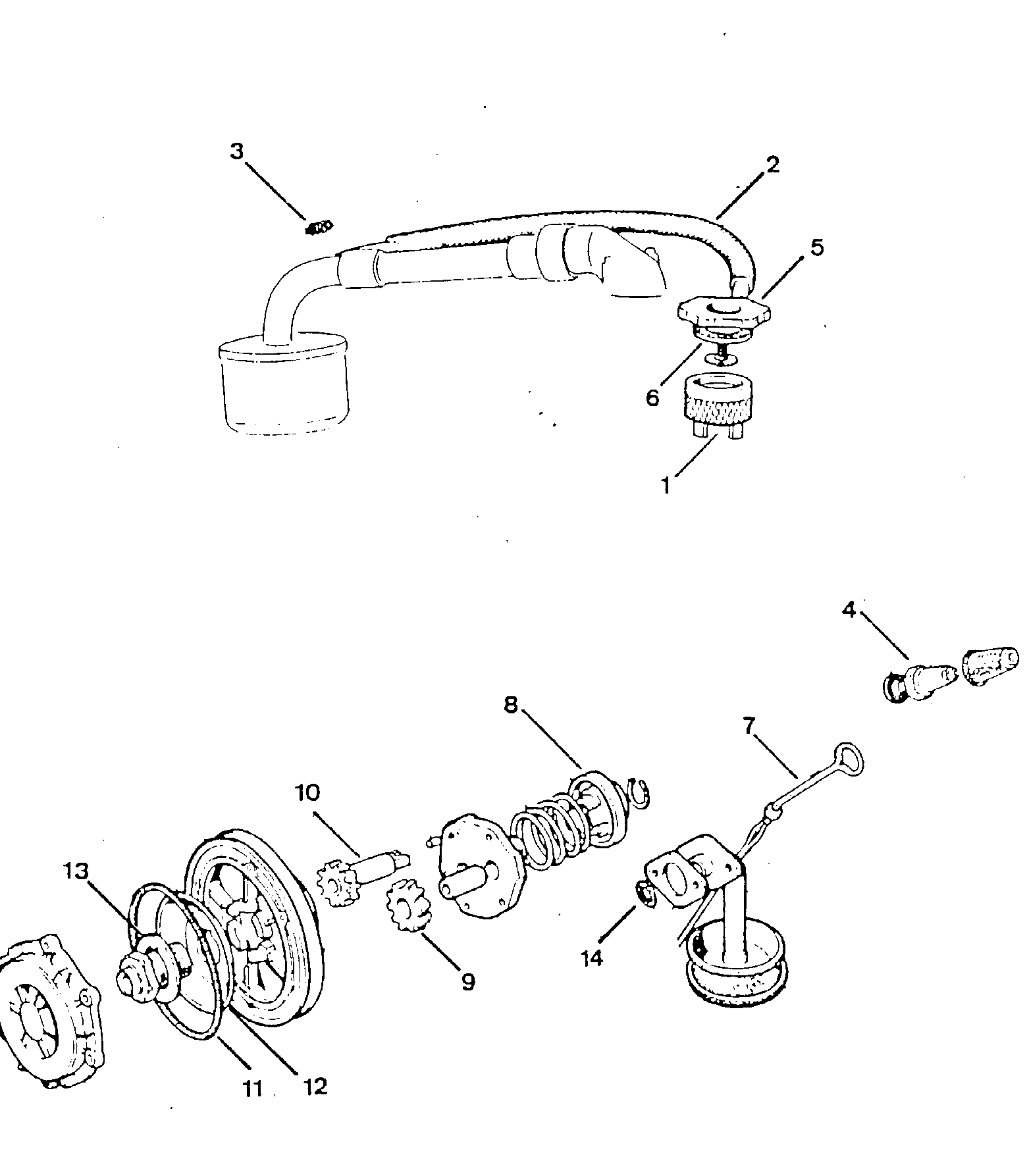

Image Number Product Price ex VAT
2 OIL BREATHER HOSE 500 £3.85
3 FLAME TRAP 500/600/850 £3.90
4 OIL PRESSURE SWITCH 500/850/11/1500/126 £12.50
6 OIL FILLER CAP RUBBER 500 £2.50
11. 12 OIL FILTER O RING 500/126 £2.99
12 CRANK PULLEY 500 N/D/F/L/R/126 £32.00
13 CRANKSHAFT PULLEY LOCK TAB 500/126 £3.99
13 CRANK NUT FIAT 500 F/L/R, 126, 500 GIADINERA £11.90
Not Illustrated SUMP PLUG- OIL DRAIN PLUG 124 £5.00
Available On Request
Image Number Part Number Product Price ex VAT
1 HNG3004156014 OIL FILLER STRAINER 500 £22.64
5 HNG3004122758 OIL FILLER CAP 500N/D £7.43
7 4004111724 Dip Stick Please Enquire
8 HNG3000987046 OIL PRESSURE RELEASE VALVE 500R/126 £20.00
9 HNG3000974665 OIL PUMP GEAR 500 N/D/F £8.35
10 300098709 Drive Gear (6mmShaft) Please Enquire
14 HNG3000996355 O RING FOR OIL TUBE - 500 £1.50
Not Illustrated HNG3004183339 OIL PUMP GEAR 500F £16.50
Not Illustrated HNG1000005152/1 OIL PUMP ASSEMBLY 500R/126 £112.50
Not Illustrated HNG1000005100 OIL SUMP 500 Please Enquire
Not Illustrated HNG1000005177 ***NLA*** OIL PUMP & COVER 126 £59.68
Not Illustrated 3004299376 Driven Gear Please Enquire
Not Illustrated 3004299378 Drive Gear c/w shaft Please Enquire
Not Illustrated 5100/1 Aluminium Sump (Large) Please Enquire
Not Illustrated HNG3004306766 OIL SUMP 500/126 £81.00
