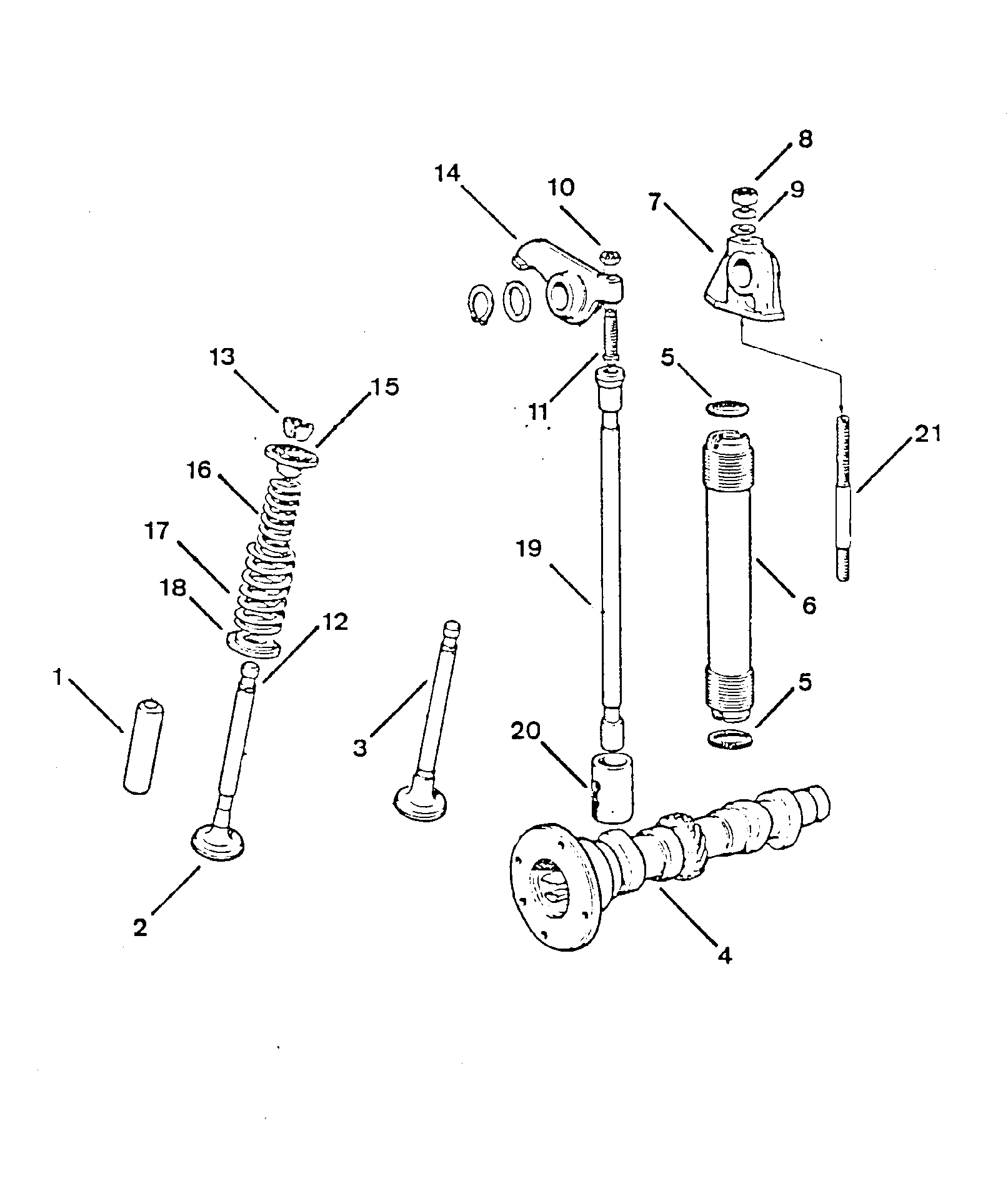

VALVE GEAR

Image Number Product Price ex VAT
1 VALVE GUIDE 500D/F £7.65
2 EXHAUST VALVE 500 D/F/126 £8.95
3 INLET VALVE 500 D/F/R/126 £7.95
3 INLET VALVE 126/650CC £17.95
3 INLET VALVE 126/650CC) £11.00
5 PUSH ROD TUBE OIL SEALS 500/126 THICK £5.95
5 PUSHROD TUBE OIL SEALS SET 500/126 THIN £6.99
10 NUT F. VALVE GUIDE 500 N/D/F (M6x1) £1.99
11 TAPPET ADJUSTING SCREW 500 F/R/126 M7 £4.00
12 VALVE OIL SEAL 500 F/R/126 £0.60
15 VALVE SPRING CAP 500/126 £3.40
16 VALVE SPRING (INNER) 500 F/R/126 £3.99
17 VALVE SPRING (OUTER) 500 F/R/126 £3.99
21 ROCKER SHAFT STUD 500 £5.99
Not Illustrated VALVE SPRING SET UPRATED (ABARTH) 500/126 £120.00
Not Illustrated WASHER 500/126 £0.79
Available On Request
Image Number Part Number Product Price ex VAT
1 HNG3004294108 VALVE GUIDE 500 R/126 £4.25
2 HNG1000005125 EXHAUST VALVE (3 GROOVES) 500R/126 £5.10
4 HNG3004183336 CAMSHAFT 500F/R/126 £137.28
6 3004314538 Push Rod Tubes Please Enquire
6 HNG3000987056 PUSHROD TUBE 500D/F/L/R £13.73
7 HNG3004064493 ROCKER SHAFT BEARING 500/126 £7.43
11 HNG3000370730 TAPPET ADJUSTING SCREW 500 N/D/F M6 £3.95
13 HNG3014197070 VALVE COLLET 500/126 £1.99
14 HNG3004137985 ROCKER ARM 500 F/R/126 (M7) £9.28
14 HNG3004064492 ROCKER ARM 500 N/D/F (M6) Please Enquire
17 HNG3004015444 VALVE SPRING (OUTER) 500F/L/1100 £3.99
18 HNG3004294100 VALVE SPRING CUP 500/126 £2.40
19 HNG3004064490 PUSHROD 500/126 £6.02
20 HNG3004161986/set CAMSHAFT FOLLOWER STD 500/126 £79.80
22 HNG3016104111 NUT F. ROCKER SHAFT STUD 500 N/D/F/126 £0.74
Not Illustrated RICBUSH500 CAMSHAFT REPAIR BUSH £32.00
