Relays

Image Number Product Price
Available On Request

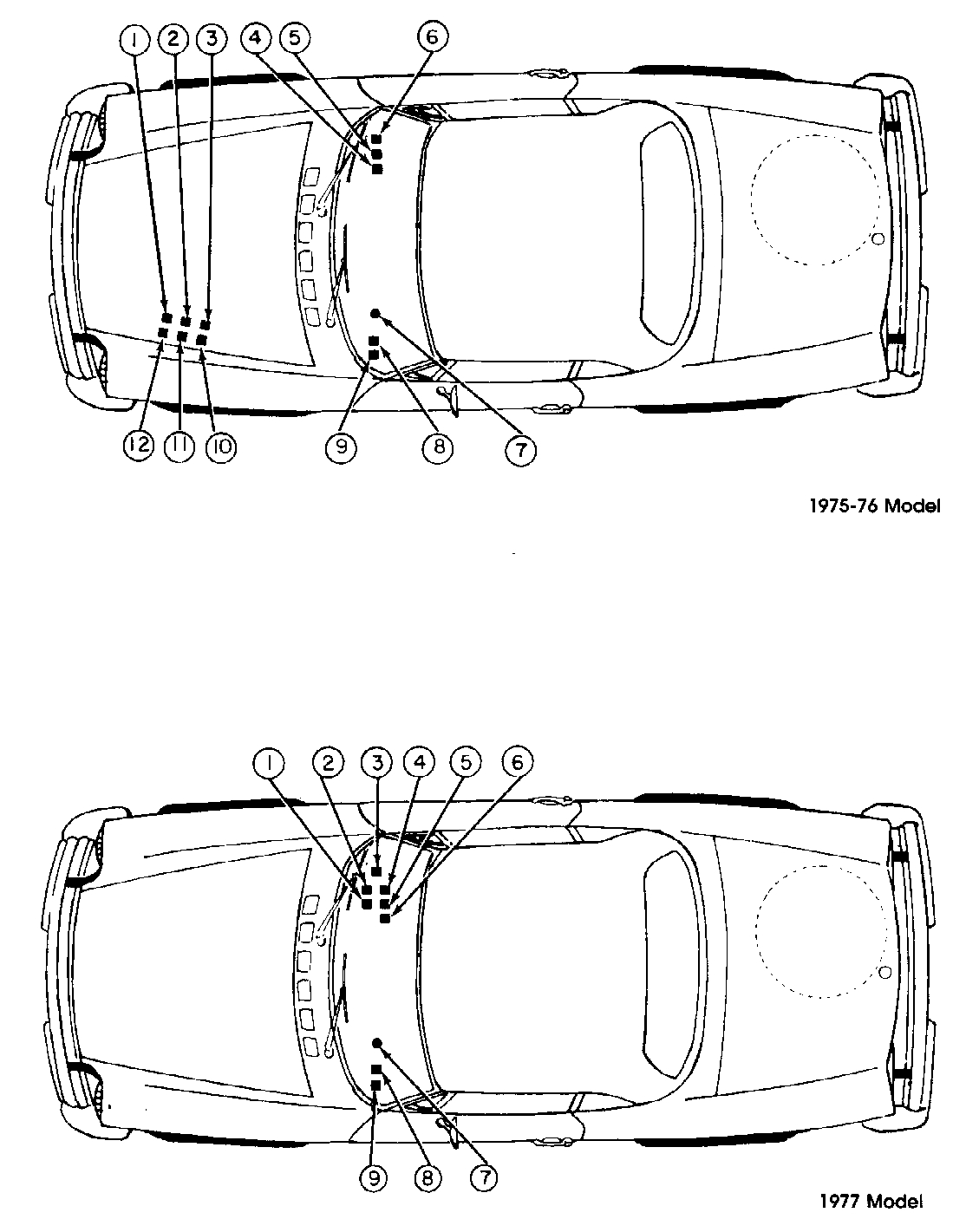

Image Number Part Number Product Price
UPPER 1 3004337068 DIVERTER VALVE BYPASS RELAY Please Enquire
LOW 1 3004320629 HORN RELAY Please Enquire
UPPER 2 3007686776 ENGINE FAN RELAY Please Enquire
LOW 2 3007686774 SEATBELT RELAY Please Enquire
LOW 3 3004407824 SEATBELT DELAY SWITCH Please Enquire
UPPER 3 3007686776 HORN RELAY Please Enquire
UPPER 4 3004444241 SEATBELT/REMOVE KEY BUZZER Please Enquire
LOW 4 3007686774 IGNITION MODE RELAY Please Enquire
UPPER 5 3004320629 DITTO RELAY Please Enquire
LOW 5 3007686774 DIVERTER VALVE BYPASS RELAY Please Enquire
LOW 6 3004444241 SEATBELT/REMOVE KEY BUZZER Please Enquire
UPPER 6 3004357723 SEATBELT DELAY SWITCH Please Enquire
UPPER 7 3004347645 INDICATOR FLASHER Please Enquire
LOW 7 3004347645 INDICATOR FLASHER Please Enquire
LOW 8 3004177176 WIPER INTERMITTENT SWITCH Please Enquire
UPPER 8 3004177176 WIPER INTERMITTENT SWITCH Please Enquire
LOW 9 3004200679 HAZARD WARNING SWITCH Please Enquire
UPPER 9 3004200679 HAZARD WARNING SWITCH Please Enquire
UPPER 10 3007686774 BATTERY CHARGER RELAY Please Enquire
UPPER 11 3007686774 FUEL PUMP RELAY Please Enquire
UPPER 12 3007686774 IGNITION MODE RELAY Please Enquire
