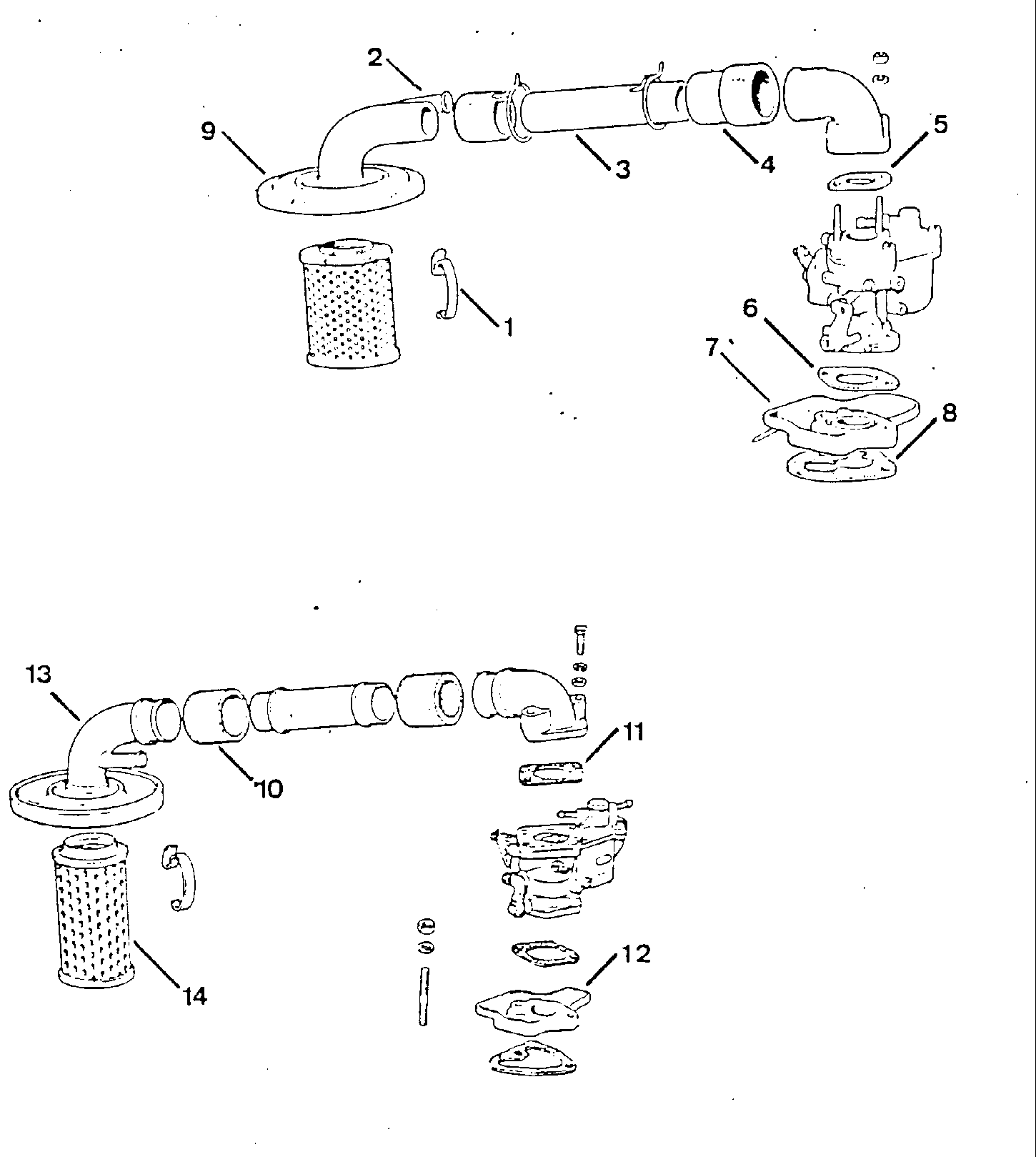

| Image Number | Product | Price ex VAT |
|---|---|---|
| 1 | CLIPS FOR AIR FILTER BOX 500/126 | £1.50 |
| 2 | AIR FILTER PIPE 500 (FILTER END) | £2.38 |
| 4 | AIR FILTER PIPE 500 (CARB. END) | £2.65 |
| 5 | UPPER CARBURETTOR GASKET 500F | £0.85 |
| 6 | CARBURETTOR GASKET 500/126 | £1.36 |
| 7 | CARBURETTOR BASE PLATE 500 D/F | £21.25 |
| 8 | AIR FILTER 500 38MM | £6.95 |
| 8 | CARBURETTOR GASKET 500 | £1.25 |
| 9 | AIR FILTER LID - 500 D/F | £27.00 |
| 10 | AIR HOSE CONNECTOR | £1.50 |
| 12 | CARBURETTOR BASE PLATE 500 R/126 | £13.50 |
| Not Illustrated | FIAT 500 PARTS CATALOGUE - ILLUSTRATED | £10.00 |
Available On Request
| Image Number | Part Number | Product | Price ex VAT |
|---|---|---|---|
| 3 | HNG3004246922 | CARB CONNECTING TUBE 500D/F (with connectors & clips) | £26.25 |
| 11 | HNG3004296087 | INLET MANIFOLD GASKET 500R/126 | Please Enquire |
| 13 | HNG3004244168 | AIR FILTER TOP COVER - PLASTIC | £17.95 |
| 14 | 3007588406 | Air Filter Element | Please Enquire |
| 15 | HNG3004039386 | CARBURETTOR INLET PIPE 500F/L | £22.08 |
| Not Illustrated | 90660 | Carburettor Gasket Kit | Please Enquire |
| Not Illustrated | HNG661 | CARBURETTOR REBUILD KIT 126/650cc 28IMB | £27.00 |
| Not Illustrated | HNG402/C | CARBURETTOR REBUILD KIT 500 F/L 26 IMB | £68.00 |
| Not Illustrated | HNG3004075272/BLANK | AIR FILTER LID 500 D/F BLANK TOP | £14.95 |
| Not Illustrated | MBG1523001901 | WEBER 28 IMB CARBURETTOR - 126 650cc | £176.21 |
